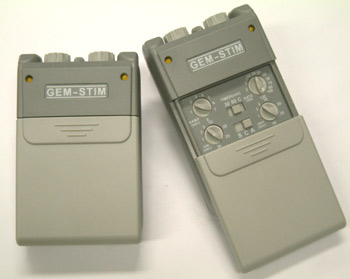

The GEMORE dual channel analog EMS (NMES) which is analog appearance but microprocessor inside. So the parameter setting will be more accurate.
GM3A50E
- Channel: Dual, isolated between channels
- Pulse Amplitude: 0-80mA into 500 ohm load.
- Pulse Rate:Adjustable, from 2Hz ~ 120 Hz
- Pulse Width:250 μ S fixed
- Mode:S, C, A (Synchronous, Continue, Alternation)
- ON time:1 - 30 sec adjustable
- Ramp time:1 - 8 sec adjustable
- OFF time:1 - 30 sec adjustable
- Wave Form:Asymmetrical Bi-Phasic Square Pulse
- Constant current
- Timer:30,60 min or Continue
- Power consumption is very small after timer off
- Power saving is good than others
- Power: DC 9V battery
- Size: 95 (H)× 61.5(W) × 26(T) mm
- Weight: Approx. 125gm (include battery)
- Tolerance: All parameters are +/-10% except the amplitude is +/-20%
Other available same series: 3A00E, 3A10E
|
