4CH IF, Interferential Current Stimulator

The GEM-STIM clinical IF Series is a professional four-channel stimulator designed for pain management applications. It is available for OEM manufacturing and private label branding to meet diverse market requirements.

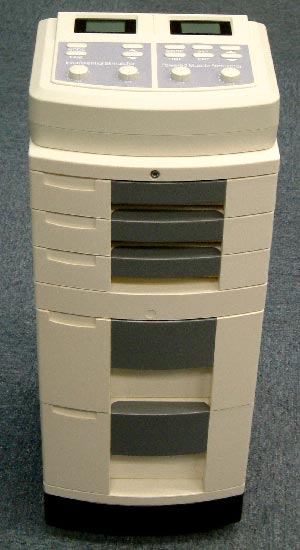

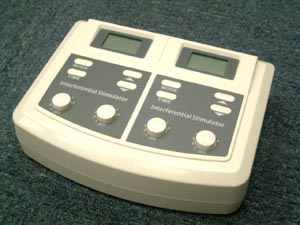

This series of devices is the combination of two units with a dual-channel electric stimulator (Total 4 channels) for active treatment application, which is equipped with a Liquid Crystal Display indicating operation modes and parameters as well as an 8-bit microcomputer for controlling the system. It can be used in a hospital for two patients at the same time or at different times. The clinical-type device has two independent control panels for different patients’ different parameter requirements.

TECHNICAL SPECIFICATIONS

GM382IF

• Channel: Four, isolated between channels
• Pulse intensity: Adjustable 0-80mA peak into 500 ohm load each channel, constant current
• Carrier Frequency: 4000Hz fixed (CH1 of left and right side)
• Modulating Frequency: 4004-4160Hz Adjustable (CH2 of left and right side)
• Sweep Time:15 seconds
• Frequency Shift Percent: Frequency shifts from 30% below set frequency to 60% above and returns to 30% below set.
• Output Configuration: Quanta polar (4 electrodes)
• Waveform: Symmetrical balanced Sine wave
• Interference Pulse Freq: 4-160 bps, Adjustable 4 bps/step
• Pulse Duration: 125μs maximum
• Patient Compliance meter: Shows the treatment times, counted by minutes.
• Patient Lock: Prevents the patient from changing any of the parameters set by the physician/practitioner.
• Timer: 15, 30, 45, 60 minutes or Continue selectable
• LCD: Shows modes, bps rate, abrupt/ramp, timer, and channels
• Max charge per Pulse: 20 microcoulombs maximum
• Power Source: 6 pcs 1.5V UM-3/AA size batteries or 9-Volt adaptor
• Dimension: Approx. 287 x 224 x 82 mm
• Weight: Approx. 1250 g (without batteries)
• Tolerance: +/-10%

  **** bps: number of beats per second
