The GEM-STIM digital IF Series is a professional dual-channel stimulator designed for pain management applications. It is available for OEM manufacturing and private label branding to meet diverse market requirements.

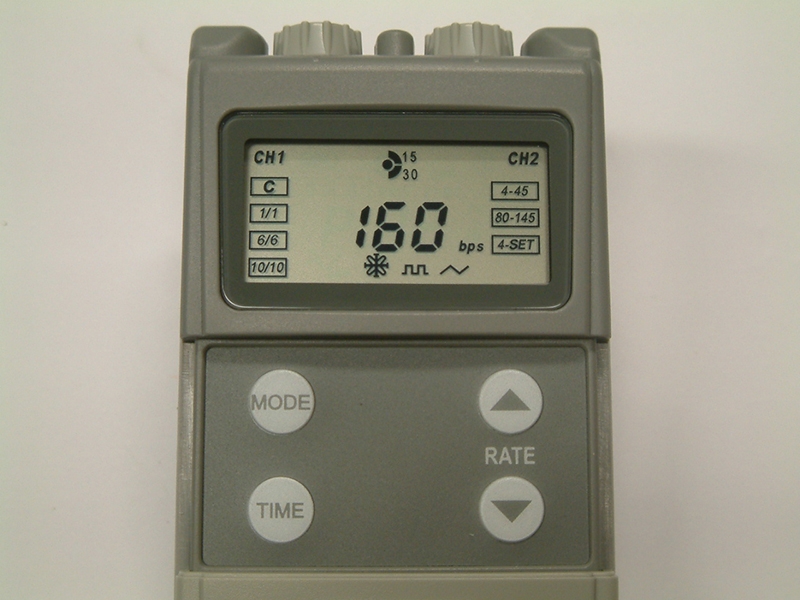

The GEMORE dual-channel digital IF with True Sine Wave. Not only can it set parameters accurately, but it also operates easily with four keys with LCD display, according to the prescription for patients' conditions. This device has a large liquid crystal display and push buttons, which are helpful for people who can easily set the parameters. The frequency keeps its setting value and would not be affected by temperature increase during treatment. Its output waveform is a real Sine Wave.

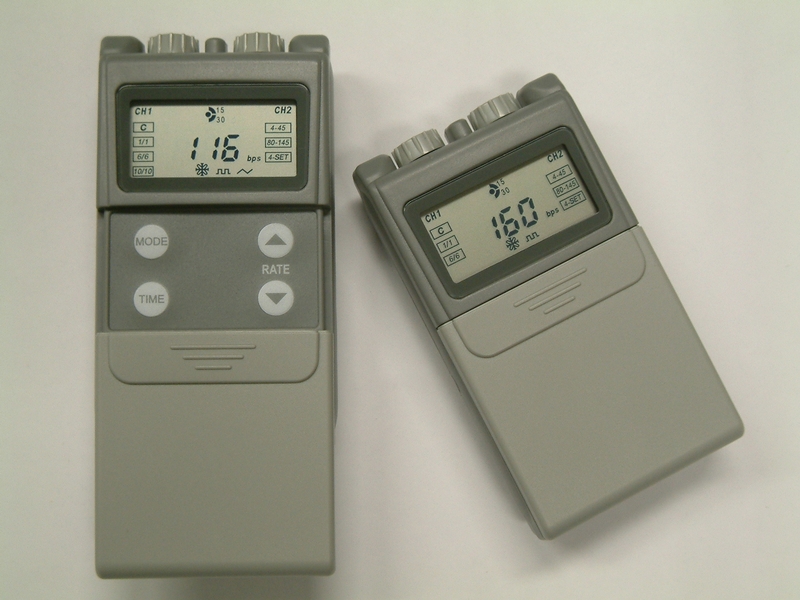

GM322IF

True Sine Wave

Interferential of quad polar

• Channel: Dual, isolated between channels
• Pulse Amplitude: 0-70mA peak to peak into 500 ohm load.
• Carrier Frequency: 4000Hz fixed
• Modulating Frequency: Adjustable, from 4004Hz ~ 4160 Hz , 4 Hz/step
• Pulse Duration: 125 μS
• Mode: 4-160 bps adjustable; Auto Sweep:4-45 bps, 80-145 bps, 4 – SET bps; Frequency Shift: 1/1 abrupt, 6/6 abrupt, 6/6 ramped, 10/10 abrupt, 10/10 ramped
• Waveform: Symmetrical balanced Sine wave
• Output Configuration: Quad polar ( 4 electrodes)
• Interference Pulse Freq: 4-160 bps, adjustable 4 bps/step
• Sweep time: 15 sec
• Timer: 15,30 min
• Constant current
• Patient compliance meter
• Patient Lock system
• Four keys: Accurate and easy parameter setting
• Low battery indicator
• Power consumption is very small after the timer is off
• Power: DC 9V adaptor
• Size:108(H)× 61.5(W) × 25(T) mm
• Weight: Approx. 140 g (including battery)
• Tolerance: +/-10%
