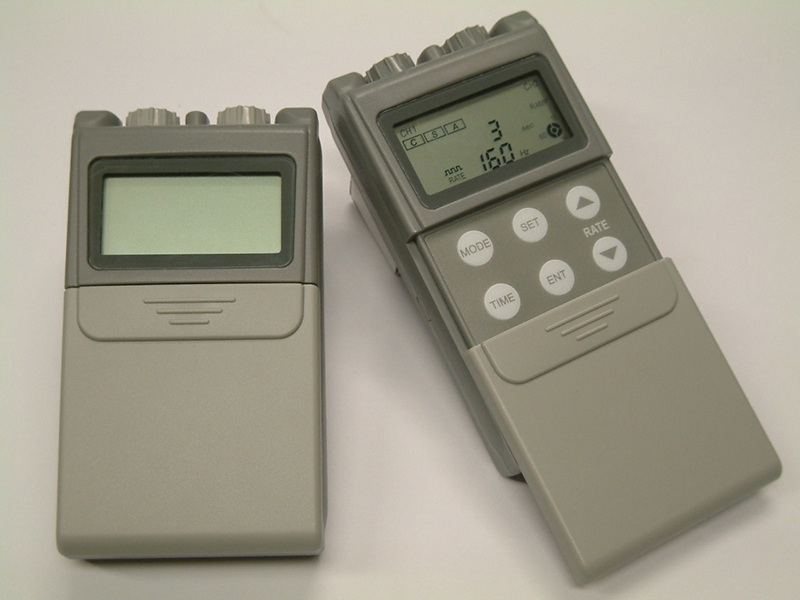

The GEM-STIM digital EMS Series is a professional dual-channel stimulator designed for rehabilitation applications. It is available for OEM manufacturing and private label branding to meet diverse market requirements.

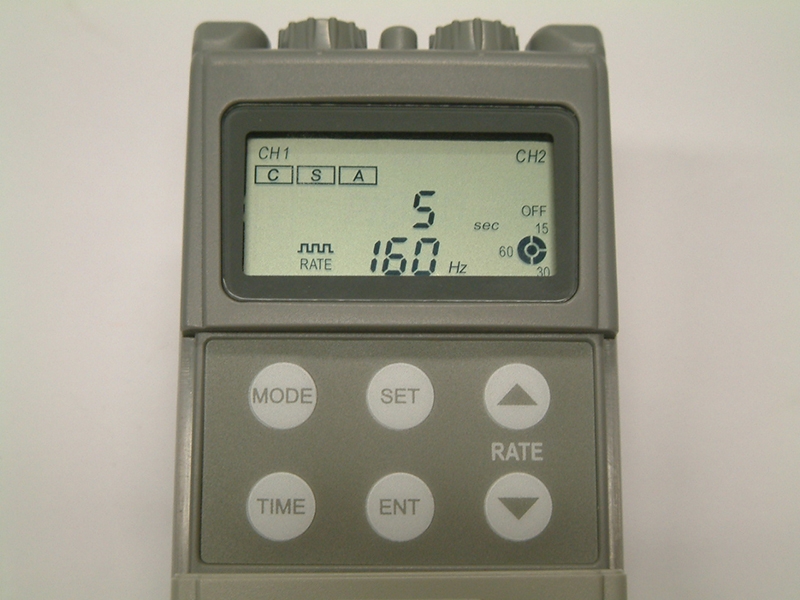

The GEMORE dual-channel digital EMS (NMES) has a compliance meter that can store the treatment time used by the patients. Not only can it set parameters accurately, but it also operates easily with an LCD display by prescription for patients' condition. This device has a large liquid crystal display and push buttons, which are helpful for people who can easily set the parameters.

GM320E

• Channel: Dual, isolated between channels
• Pulse Amplitude: 0-80mA into 500 ohm load.
• Pulse Rate: Adjustable, from 1Hz ~ 160 Hz, 1 Hz/step (1-20Hz), 5Hz/step (20-160Hz)
• Pulse Width:250 μ S fixed
• Mode: S/C/A (Synchronous/ Continue/ Alternation)
• ON time: 1 – 30 sec adjustable
• Ramp time: 1 - 8 sec adjustable
• OFF time: 1 - 30 sec adjustable
• Wave Form: Asymmetrical Bi-Phasic Square Pulse
• Timer: 15,30,60 min or Continue
• Constant current
• Software ramp up for mode change
• Patient compliance meter
• Patient Lock system
• Six keys: Accurate and easy parameter setting
• Low battery indicator
• Power consumption is very small after timer off
• Power saving is better than others
• Power: DC 9V battery
• Size:108(H)× 61.5(W) × 25(T) mm
• Weight: Approx. 140 g (including battery)
• Tolerance: +/-10%

Other available same series: GM310E, GM330E
