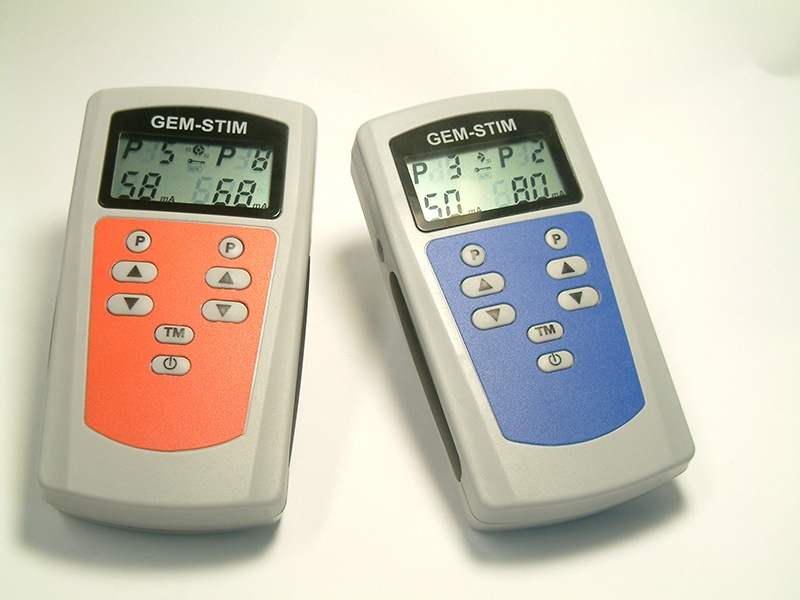

GM350PP Pre-Programmed TENS with Independent Channels
The GEM-STIM Digital TENS Series is a professional dual-channel stimulator designed for pain management applications. It is available for OEM manufacturing and private label branding to meet diverse market requirements.
The new two-independent-channels stimulator. You can use P2 for channel 1 and use P6 for channel 2 at the same time for different treatment areas. It is good for different pain and areas. The preprogrammed mode is easy operated by user.
GM350PP
- Channel: Dual, isolated between channels
- Pulse Amplitude: Adjustable 0-80mA peak into 500 Ω load each channel, constant current
- Pulse Rate: 2Hz-120Hz (pre-set).
- Pulse Width: 60μs - 260μs (pre-set).
- Auto Lock: To prevent the user from changing any fixed parameters. Auto-set if no key is pressed for more than 10 sec.
- Compliance meter: Shows the treatment time in hours.
- Timer: 15, 30, 60 minutes and continue selectable
- LCD: Shows CH1/CH2 intensity, timer, CH1/CH2.mode
Function Modes for each Channel:
P1: Continuous mode, 15 Hz.
P2: Burst mode.
P3: Continuous mode, 120 Hz.
P4: D-D (Disperse-Dense Modulation), 2 HZ/15Hz.
P5: D-D (Disperse-Dense Modulation), 2 HZ/100Hz.
P6: Width Modulation mode.
P7: MR (Rate modulation) mode.
P8: Continuous mode, 80 Hz.
P9: P1->P2->P3->P4->P5->P6->P7 in cycle, 1 min/Mode.
PS. The mode content:
Burst: Cycle Bursts, 2Bursts/sec, 9pulses/Burst, 100Hz.
Continuous mode: Continuous output
Modulated Width. Pulse width is automatically varied in an interval of 6 seconds. The modulation range of pulse width is from 140μs to 260μs, then returns to 140μs in 6 sec cycle time.
Rate modulation. MR consists of alternating pulse rates from 3 Hz to 100 Hz, then returns to 3 Hz in a 6-sec cycle time.
Waveform: Asymmetrical Bi-phasic square pulse.
Voltage: 0-110 Volt (Open Circuit).
Max charge per pulse: 21 microcoulombs
Power Source: 9-Volt Battery.
Dimensions: 122mm(H) ×65mm(W) ×25mm(T).
Weight: 140grams (battery included).
All electrical specifications are ±10% at a 500Ω load.
